Current Transformers

A current transformer is a measuring device for metering and protection system.The primary current of the CT is transformed into the required secondary current of 5A. or 1A.
Measuring CT’s have different class of accuracy i.e. 0.1, 0.2S, 0.2, 0.5S, 0.5 & 1.0 and protection CT’s have 5P10, 5P20 and 10P10. In the case of special CT’s(PS class),the Knee Point Voltage(Vk) of the CT is specified along with secondary resistance and magnetizing current.
The construction of the CT not only depends upon the ratio but also on the Short Time Current Rating,Burden and Class of Accuracy.
The core is made from non-ageing CRGO silicon steel laminations and insulation is done with high grade paper insulation for proper distribution of electrical stresses and better voltage withstand capability.

LENGTH	WIDTH	THICK
1.22	1.22	1 TO 40
1.22	1.83	1 TO 40
1.22	2.44	1 TO 40

Part No.	Width (mm)	Suitable Bus Ba Size
HSS17	17	9x3mm, 10x3mm
HSS20	20	9x6mm, 10x6mm, 12x3mm
HSS25	25	12x6mm, 15x3mm
HSS30	30	19x6mm
HSS35	35	20x6mm, 25x3mm
HSS41	41	25x6mm, 25x10mm, 25x20mm
HSS48	48	25x12mm, 30x6mm, 30x10mm
HSS55	55	30x12mm, 38x6mm
HSS61	61	38x9mm, 38x12mm, 40x6mm, 40x10mm
HSS73	73	50x6mm
HSS81	81	50x10mm, 50x12mm
HSS85	85	60x6mm, 60x10mm
HSS93	93	60x12mm, 75x6mm
HSS103	103	75x10mm, 75x12mm
HSS110	110	90x6mm, 90x12mm
HSS128	128	100x6mm, 100x10mm
HSS140	140	100x12mm
HSS170	170	125x6mm, 125x12mm, 150x6mm
HSS190	190	150x6mm, 150x10mm, 150x12mm
HSS210	210	175x6mm, 175x10mm, 175x12mm
HSS230	230	200x12mm

Properties	Values
Working Tempreture	90°C
Dielectric Strength	10 KV/mm
Insulation Resistance	20 X 10 10 Ohms at 500V. DC
Tensile Strength	400 Kg/cm (min)
Ultimate Elongation	100% (min)
Chemical Resistance	Good
Chemical Resistance	Good
Fire Resistance	Self Extinguishing
Shrinkable Tempreture	105°C – 110°C for 4-5 mts.
Shrinkage	30% – 35%
Dimensional Variance	+- 1.5mm (for Size 17mm to 61 mm)
	+- 3.0mm (for size 73mm to 230mm)

Dimensions

Height	Part No.	Insert (M)	Rt	Rb	TL	Nominal Voltage
H (mm)			(mm)	(mm)	(mm)	AC/DC
25	C 625	M6	19	25	7	400/500
30	C 630	M6	25	30	7	600/750
30	C 830	M8	25	30	9	600/750
35	C 635	M6	28	35	7	600/750
35	C 835	M8	28	35	12	600/750
40	C 640	M6	33	40	9	600/750
40	C 840	M8	33	40	12	1000/1200
40	C 1040	M10	33	40	12	1000/1200
45	C 845	M8	33	40	12	1000/1200
45	C 1045	M10	33	40	12	1000/1200
50	C 850	M8	40	50	12	1200/1500
50	C 1050	M10	40	50	15	1200/1500
50	C 1250	M12	40	50	17	1200/1500
60	C 1060	M10	40	50	15	1500/1800
60	C 1260	M12	40	50	17	1500/1800
60	C 1060	M10	40	60	15	1500/1800
60	C 1260	M12	40	60	17	1500/1800
70	C 1070	M10	40	50	15	2000/2400
70	C 1270	M12	40	50	17	2000/2400
75	C 1075	M10	40	50	15	2000/2400
75	C 1275	M12	40	50	17	2000/2400
80	C 1080	M10	40	50	15	2000/2400
80	C 1280	M12	40	50	17	2000/2400

Material : DMC (Dough Molding Compound)
All Dimensions are in MM
TL : Effective Thread Length
Insert : Brass / Steel (Zinc Plated)
Color : Red / Brown / Grey

Hexagonal Type Insulators

Hexagonal-Insulators

Height	Part No.	Insert (M)	A/F	R	TL	Nominal Voltage
H (mm)			(mm)	(mm)	(mm)	AC/DC
25	H 625	M6	21	16	7	400/500
25	H 825	M8	21	16	9	400/500
30	H 630	M6	31	25	7	600/750
30	H 830	M8	31	25	9	600/750
35	H 635	M6	32	26	7	600/750
35	H 835	M8	32	26	12	600/750
35	H 1035	M10	32	26	12	600/750
40	H 640	M6	39	31	9	600/750
40	H 840	M8	39	31	12	1000/1200
40	H 1040	M10	39	31	12	1000/1200
45	H 845	M8	41	32	12	1000/1200
45	H 1045	M10	41	32	12	1000/1200
50	H 850	M8	48	36	12	1200/1500
50	H 1050	M10	48	36	15	1200/1500
50	H 1250	M12	48	36	17	1200/1500
60	H 1060	M10	52	38	15	1500/1800
60	H 1260	M12	52	38	17	1500/1800
65	H 1065	M10	55	41	15	1500/1800
65	H 1265	M12	55	41	17	1500/1800
70	H 1070	M10	55	41	15	2000/2400
70	H 1270	M12	55	41	17	2000/2400
75	H 1075	M10	55	41	15	2000/2400
75	H 1275	M12	55	41	17	2000/2400

Material: DMC (Dough Molding Compound)
All Dimensions are in MM
TL: Effective Thread Length
Insert: Brass / Steel (Zinc Plated)
Color: Red

Cylindrical Type Insulators

Cylindrical--Insulators

Height	Part No.	Insert (M)	R	TL	Nominal Voltage
H (mm)			(mm)	(mm)	AC/DC
25	CY 625	M6	25	7	400/500
30	CY 630	M6	30	9	600/750
30	CY 830	M8	30	9	600/750
40	CY 64030	M6	30	12	1000/1200
40	CY 84030	M8	30	12	1000/1200
40	CY 640	M6	40	12	1000/1200
40	CY 840	M8	40	12	1000/1200
40	CY 1040	M10	40	12	1000/1200
50	CY 85040	M8	40	17	1200/1500
50	CY105040	M10	40	17	1200/1500
50	CY 850	M8	50	17	1200/1500
50	CY 1050	M10	50	17	1200/1500
50	CY 1250	M12	50	17	1200/1500
60	CY 106050	M10	50	17	1500/1800
60	CY 126050	M12	50	17	1500/1800
60	CY 1060	M10	60	17	1500/1800
60	CY 1260	M12	60	17	1500/1800

Material : DMC (Dough Molding Compound)
All Dimensions are in MM
TL : Effective Thread Length
Insert : Brass / Steel (Zinc Plated)
Color : Red / Brown / Grey

Drum Type Insulators

Drum-Insulators

Height	Part No.	Insert (M)	A/F	R	TL	Nominal Voltage
H (mm)			(mm)	(mm)	(mm)	AC/DC
25	D 625	M6	21	16	7	400/500
25	D 825	M8	21	16	9	400/500
30	D 630	M6	31	25	7	600/750
30	D 830	M8	31	25	9	600/750
35	D 635	M6	32	26	7	600/750
35	D 835	M8	32	26	12	600/750
35	D 1035	M10	32	26	12	600/750
40	D 640	M6	39	31	9	600/750
40	D 840	M8	39	31	12	1000/1200
40	D 1040	M10	39	31	12	1000/1200
45	D 845	M8	41	32	12	1000/1200
45	D 1045	M10	41	32	12	1000/1200
50	D 850	M8	48	36	12	1200/1500
50	D 1050	M10	48	36	15	1200/1500
50	D 1250	M12	48	36	17	1200/1500
60	D 1060	M10	52	38	15	1500/1800
60	D 1260	M12	52	38	17	1500/1800
65	D 1065	M10	55	41	15	1500/1800
65	D 1265	M12	55	41	17	1500/1800
70	D 1070	M10	55	41	15	2000/2400
70	D 1270	M12	55	41	17	2000/2400
75	D 1075	M10	55	41	15	2000/2400
75	D 1275	M12	55	41	17	2000/2400

Material : DMC (Dough Molding Compound)
All Dimensions are in MM
TL : Effective Thread Length
Insert : Brass / Steel (Zinc Plated)
Color : Red / Brown / Grey

Bus Bar Supports

L Type Support

Part No. Height

L 60 60

L 85 85

L 105 105

L 125 125

L 150 150

Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM

Part No.	Height
L 60	60
L 85	85
L 105	105
L 125	125
L 150	150

Finger Type Support

pm45

Bus Bar Slot	Part No.	A	B	C	D	E	F	Sd
6mm x 1	106S	7	50	22	14	10	–	15
10mm x 1	110S	11	50	22	14	10	–	15
12mm x 1	112S	14	50	22	14	10	–	15
6mm x 1	106W	7	60	32	14	10	–	15
10mm x 1	110W	11	60	32	14	10	–	15
12mm x 1	112W	14	60	32	14	10	–	15
6mm x 1	106K	7	70	40	20	16	–	15
10mm x 1	110K	11	70	40	20	16	–	15
12mm x 1	112K	14	70	40	20	16	–	15
6mm x 2	206W	7	60	32	14	10	6	15
10mm x 2	210W	11	60	32	14	10	9	15
12mm x 2	212W	14	70	32	14	10	11	15
6mm x 2	206K	7	70	40	20	16	6	15
10mm x 2	210K	11	70	40	20	16	9	15
12mm x 2	212K	14	70	40	20	16	11	15
6mm x 3	306W	7	70	32	14	10	6	15
10mm x 3	310W	11	80	50	14	10	9	15
12mm x 3	312W	14	90	50	15	11	11	15
6mm x 3	306K	7	70	40	20	16	6	15
10mm x 3	310K	11	100	50	20	16	6	15
12mm x 3	312K	14	100	50	20	16	11	15
6mm x 4	406W	7	80	50	14	10	–	15
6mm x 4	406K	7	100	50	20	16	–	15
10mm x 4	410K	11	130	80	20	16	9	15
12mm x 4	412K	14	130	80	20	16	11	15

Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM
Sd: Depth of the Slot
Mounting Hole: ᴓ 8.5mm

TPN Type Support

pm47

Bus Bar Slot	Part No.	A	B	C	D	N	Z	Y	Y1	F	Sd
6mm x 1 x TP&N	TPN 107/30	7	300	280	50	7	65	52.5	52.5	–	15
10mm x 1 x TP&N	TPN 111/30	11	300	280	50	7	65	52.5	52.5	–	15
12MM x 1 x TP&N	TPN 114/30	14	300	280	50	7	65	52.5	52.5	–	15
6mm x 1 x TP&N	TPN 107/35	7	350	328	50	7	75	62.5	62.5	–	15
10mm x 1 x TP&N	TPN 111/35	11	350	328	50	7	75	62.5	62.5	–	15
12MM x 1 x TP&N	TPN 114/35	14	350	328	50	7	75	62.5	62.5	–	15
6mm x 1 x TP&N	TPN 107/42	7	420	396	60	7	100	52.5	68	–	15
10mm x 1 x TP&N	TPN 111/42	11	420	396	60	7	100	52.5	68	–	15
12MM x 1 x TP&N	TPN 114/42	14	420	396	60	7	100	52.5	68	–	15
6mm x 2 x TP&N	TPN 207/35	7	350	328	50	7	70	78	62.5	6	15
10mm x 2 x TP&N	TPN 211/35	11	350	328	50	11	70	78	62.5	9	15
12mm x 2 x TP&N	TPN 214/35	14	350	328	50	14	70	78	62.5	11	15
6mm x 2 x TP&N	TPN 207/42	7	420	396	60	7	100	52.5	69	6	15
10mm x 2 x TP&N	TPN 211/42	11	420	396	60	11	100	52.5	69	9	15
12mm x 2 x TP&N	TPN 214/42	14	420	396	60	14	100	52.5	69	11	15

Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM
TPN: Triple Pole & Neutral

Grip Type Support

Part No.

10 GS 306/211

11 GS 306/411

12 GS 406/311

30 GS 306/211

31 GS 306/211

31 GS 211/214

30 GSL 207/211

30 GSL 306/211

42 GSL 307/211

43 GS 307/211

44 GS 207/211

Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM
Mounting Hole Suitable for M8 Stud
C-C (ph): Centre to Centre Between Phases
GS: Grip Support

Part No.
10 GS 306/211
11 GS 306/411
12 GS 406/311
30 GS 306/211
31 GS 306/211
31 GS 211/214
30 GSL 207/211
30 GSL 306/211
42 GSL 307/211
43 GS 307/211
44 GS 207/211

Mounting Details

Current Transformers

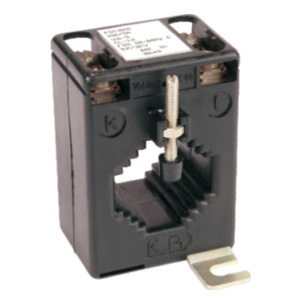

CT3010

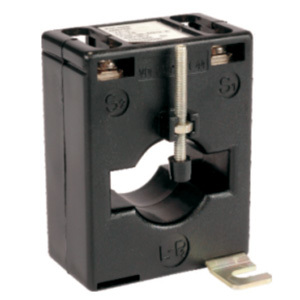

CT4010

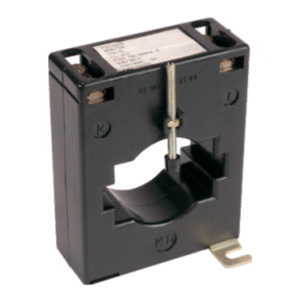

CT6010

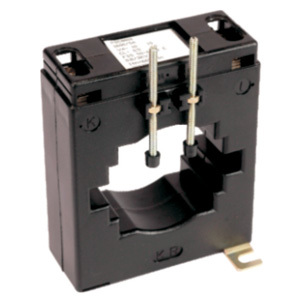

CT8010

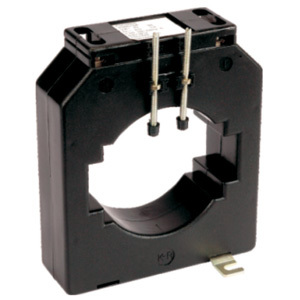

CT10010

FRP Profiles

FRP L Angle Profile

Part No. Height (mm) Width (mm) Thickness
(mm)

FRLA353505 35 35 5

FRLA505006 50 50 6

Color : White
Length: 2 Meters

Part No.	Height (mm)	Width (mm)	Thickness (mm)
FRLA353505	35	35	5
FRLA505006	50	50	6

FRP Flat Profile

Part No.	Width (mm)	Thickness (mm)
FRFP2510	25	10
FRFP3010	30	10
FRFP4010	40	10
FRFP5010	50	10
FRFP6010	60	10
FRFP7010	70	10
FRFP2520	25	20
FRFP3020	30	20
FRFP4020	40	20
FRFP5020	50	20
FRFP6020	60	20
FRFP7020	70	20

Color : White
Length: 1 Meter

Measuring Instruments

TC – 72

TC72

Technical Specifications

Properties	Values
Description	Moving Iron Meter of 90° deflection with Interchangable Scale facility
Movement Type	Moving Iron Spring Mounted Jewel bearing Suspension
Accuracy	± 1.5% of Full Scale As Per IS 1248
Range	Current (A.): 0-1A. To 1-100A. (Direct) Through CT /1A. Or /5A. For Higher Currents.
Range	Voltage (V.): 0-50V. To 0-600V. (Direct) Through PT for Higher Voltages.
Self Consumption	Ammeter (upto 5A. AC) – < 0.6VA Voltmeter (upto 500V. AC) – < 5VA
Operating Voltage	600V. RMS Max.
Test Voltage	2.5 time for 1 min. at 50 Hz
Construction and Design	As per IS 1248
Scale	According to DIN 43802
Case / Housing Material	Black Nylon, Dimensions as per DIN 43700
Bezel	Black Poly Carbonate and Nylon glass filled Dimensions as per DIN 43718
Glass Face Plate	Poly Carbonate (Shatter Proof)
Tempreture Conditions	10°C to 55°C, RH < 90%
Front Protection	IP52 Protection as Per IS2147
Terminal Protection	IP20 Terminal Protection

TC – 96

TC96

Technical Specifications

Properties	Values
Description	Moving Iron Meter of 90° deflection with Interchangable Scale facility
Movement Type	Moving Iron Spring Mounted Jewel bearing Suspension
Accuracy	± 1.5% of Full Scale As Per IS 1248
Range	Current (A.): 0-1A. To 1-100A. (Direct) Through CT /1A. Or /5A. For Higher Currents.
Range	Voltage (V.): 0-50V. To 0-600V. (Direct) Through PT for Higher Voltages.
Self Consumption	Ammeter (upto 5A. AC) – < 0.6VA Voltmeter (upto 500V. AC) – < 5VA
Operating Voltage	600V. RMS Max.
Test Voltage	2.5 time for 1 min. at 50 Hz
Construction and Design	As per IS 1248
Scale	According to DIN 43802
Case / Housing Material	Black Nylon, Dimensions as per DIN 43700
Bezel	Black Poly Carbonate and Nylon glass filled Dimensions as per DIN 43718
Glass Face Plate	Poly Carbonate (Shatter Proof)
Tempreture Conditions	10°C to 55°C, RH < 90%
Front Protection	IP52 Protection as Per IS2147
Terminal Protection	IP20 Terminal Protection

Neutral Links

Earth Connector Link

Part No. Size

ECL251P 1 Pin

ECL252P 2 Pin

Material : Brass
Plating : Bright Nickle

Part No.	Size
ECL251P	1 Pin
ECL252P	2 Pin

Neutral Links

Part No. Size Length Width Height No. of Holes

NLDM7W 7 Way 60 6.5 9 7+1

NLDM10W 10 Way 80 6.5 9 10+1

NLDM13W 13 Way 100 6.5 9 13+1

EB1M 1 Mtr. 1000 7 9 144

EB2M 1 Mtr. 1000 8 12 144

Material: Brass
Termination: M5/M6
Plating: Bright Nickle
All Dimensions are in mm
NLDM: Neutral Link Din Mounting

Part No.	Size	Length	Width	Height	No. of Holes
NLDM7W	7 Way	60	6.5	9	7+1
NLDM10W	10 Way	80	6.5	9	10+1
NLDM13W	13 Way	100	6.5	9	13+1
EB1M	1 Mtr.	1000	7	9	144
EB2M	1 Mtr.	1000	8	12	144

Panel Hardware

Panel Lock & Key

Part No. H L

PL12535 25 35

Part No. H L

PL22535 25 35

Part No. H L

PL32535 25 35

Part No. H L

PL42535 25 35

Body Material : Zinc Alloy
Lever Material : Mild Steel
All Dimensions are in MM
Plating : Chrome

Part No.	H	L
PL12535	25	35

Part No.	H	L
PL22535	25	35

Part No.	H	L
PL32535	25	35

Part No.	H	L
PL42535	25	35

Panel Utility Accessories

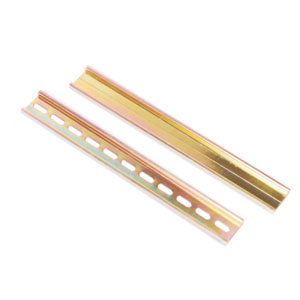

Din Rail Channels

ITEM: DIN RAIL CHANNEL

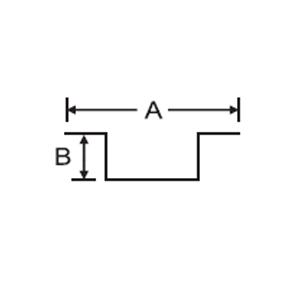

Part N0. A B Thickness

DRC0108 35 7.5 0.8

DRC0109 35 7.5 0.9

DRC0110 35 7.5 1.0

DRC0215 35 15 1.5

Material : CR Sheet Metal
Finish : Zinc Passivated
Type : Slotted / Unslotted
DRC : Din Rail Channel
Length : 1 Mtr. / 2 Mtrs.
All dimensions are in MM
Please mention Type & Length required besides
the product part no. in the purchase order.

Part N0.	A	B	Thickness
DRC0108	35	7.5	0.8
DRC0109	35	7.5	0.9
DRC0110	35	7.5	1.0
DRC0215	35	15	1.5

‘C’ Type Door Handle

Item: ‘ C’ Handle with Screws

Part No. A B CC

CH130BK 100 30 90

CH14040BK 140 40 120

Material : Engineering Plastic
All Dimensions are in MM
Color: Black

Part No.	A	B	CC
CH130BK	100	30	90
CH14040BK	140	40	120

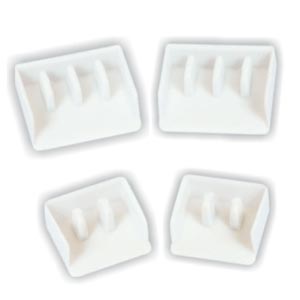

Comb Bus Bar End Caps

ITEM: COMB BUS BAR END CAPS

PART NO SIZE

EC3PP 3 POLE

EC4PP 4 POLE

Material: Engineering Plastic
Color: White

PART NO	SIZE
EC3PP	3 POLE
EC4PP	4 POLE

DB Blanking Plate

ITEM: DB BLANKING PLATE

PART NO. SIZE

DBBP12M 12 MOD

DBBP1MT 1 MTR

Material: Engineering Plastic
Color: RAL 7032, RAL 7035

PART NO.	SIZE
DBBP12M	12 MOD
DBBP1MT	1 MTR

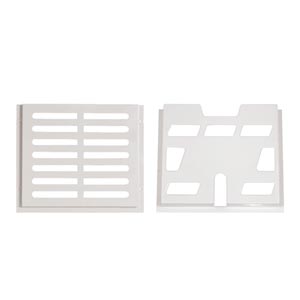

Document Holders

ITEM: DOCUMENT HOLDERS

PART NO. SIZE Depth

DHA4H A4 40

DHA4S A4 19

DHA5H A5 20

Material: Engineering Plastic
Color: RAL 7032 / RAL 7035
All Dimensions are in MM

PART NO.	SIZE	Depth
DHA4H	A4	40
DHA4S	A4	19
DHA5H	A5	20

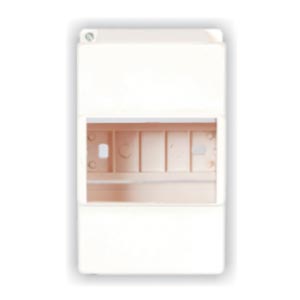

Four Pole ELCB Box

ITEM: ELCB BOX

PART NO. SIZE

FB4P 4 POLE

Material: Engineering Plastic
Color: Opel White

PART NO.	SIZE
FB4P	4 POLE

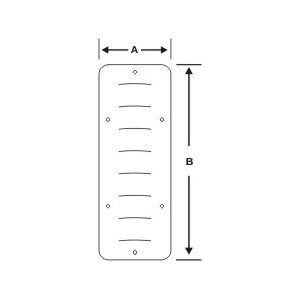

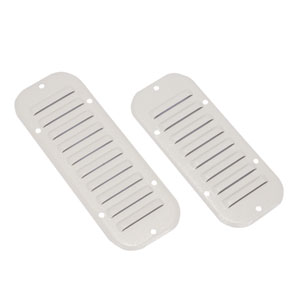

Metal Louver

ITEM: Metal Louvre

PART NO. A B

ML2 90 210

ML3 90 245

Material: Mild Steel
Finish: Powder Coated
Color: RAL 7032 / RAL 7035
All dimensions are in mm

PART NO.	A	B
ML2	90	210
ML3	90	245

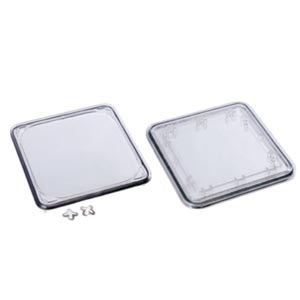

Meter Window Glass

ITEM: METER WINDOW GLASS

PART NO. TYPE

WGV12 PUSH

WGNL11 CLIP

Material: UV Grade Engineering Plastic
Color: Transparent

PART NO.	TYPE
WGV12	PUSH
WGNL11	CLIP

Self Adhesive Foam Type

Self Adhesive Foam Type Panel Gasket

Part No. Width W Thickness T

FTG123 12 3

FTG153 15 3

FTG203 20 3

FTG253 25 3

FTG403 40 3

FTG205 20 5

FTG255 25 5

FTG405 40 5

FTG505 50 5

Part No.	Width W	Thickness T
FTG123	12	3
FTG153	15	3
FTG203	20	3
FTG253	25	3
FTG403	40	3
FTG205	20	5
FTG255	25	5
FTG405	40	5
FTG505	50	5

Standoff Pillar

Mild Steel Standoff Pillar

MildSteel

Part No.	A1	A2	THREAD	HEX PROFILE(B)
MSPMF106	10	8	M6	10
MSPMF156	15	8	M6	10
MSPMF206	20	8	M6	10
MSPMF256	25	8	M6	10
MSPMF306	30	8	M6	10
MSPMF406	40	10	M6	10
MSPMF506	50	10	M6	10
MSPMF606	60	10	M6	10
MSPMF706	70	10	M6	10
MSPMF806	80	10	M6	10
MSPMF906	90	10	M6	10
MSPMF1006	100	10	M6	10
MSPMF108	10	8	M8	11
MSPMF158	15	8	M8	11
MSPMF208	20	8	M8	11
MSPMF258	25	8	M8	11
MSPMF308	30	8	M8	11
MSPMF408	40	8	M8	11
MSPMF508	50	8	M8	11
MSPMF608	60	8	M8	11
MSPMF708	70	8	M8	11
MSPMF808	80	8	M8	11
MSPMF908	90	8	M8	11
MSPMF1008	100	8	M8	11

Material: Mild Steel
Plating: Zinc Passivated
All Dimensions are in mm
MSPMF: Mild Steel Pillar Male/Female

Copper Spacers

Part No. OD ID Height(H)

CUS1215A 12 6.5 15

CUS1220A 12 6.5 20

CUS1315A 13 6.5 15

CUS1320A 13 6.5 20

Material: Electrolytic Grade Copper
Plating: Tin
CUS: Copper Spacer
All dimesions are in mm
