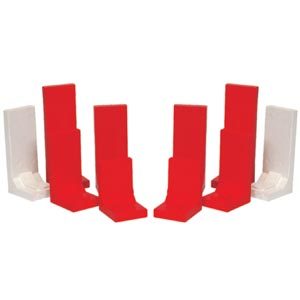

l-type-support

pm46

Part No. Height
L 60 60
L 85 85
L 105 105
L 125 125
L 150 150

Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM

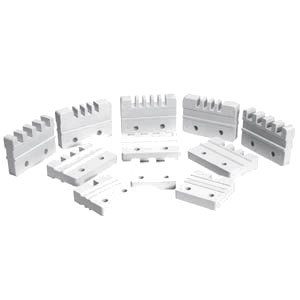

finger-type-support1

pm45

Bus Bar Slot Part No. A B C D E F Sd
6mm x 1 106S 7 50 22 14 10 - 15
10mm x 1 110S 11 50 22 14 10 - 15
12mm x 1 112S 14 50 22 14 10 - 15
6mm x 1 106W 7 60 32 14 10 - 15
10mm x 1 110W 11 60 32 14 10 - 15
12mm x 1 112W 14 60 32 14 10 - 15
6mm x 1 106K 7 70 40 20 16 - 15
10mm x 1 110K 11 70 40 20 16 - 15
12mm x 1 112K 14 70 40 20 16 - 15
6mm x 2 206W 7 60 32 14 10 6 15
10mm x 2 210W 11 60 32 14 10 9 15
12mm x 2 212W 14 70 32 14 10 11 15
6mm x 2 206K 7 70 40 20 16 6 15
10mm x 2 210K 11 70 40 20 16 9 15
12mm x 2 212K 14 70 40 20 16 11 15
6mm x 3 306W 7 70 32 14 10 6 15
10mm x 3 310W 11 80 50 14 10 9 15
12mm x 3 312W 14 90 50 15 11 11 15
6mm x 3 306K 7 70 40 20 16 6 15
10mm x 3 310K 11 100 50 20 16 6 15
12mm x 3 312K 14 100 50 20 16 11 15
6mm x 4 406W 7 80 50 14 10 - 15
6mm x 4 406K 7 100 50 20 16 - 15
10mm x 4 410K 11 130 80 20 16 9 15
12mm x 4 412K 14 130 80 20 16 11 15

Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM
Sd: Depth of the Slot
Mounting Hole: ᴓ 8.5mm

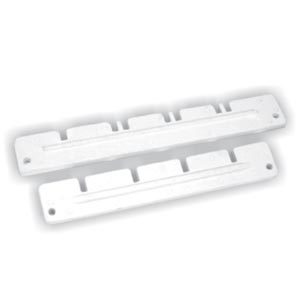

tpn-support

pm47

Bus Bar Slot Part No. A B C D N Z Y Y1 F Sd
6mm x 1 x TP&N TPN 107/30 7 300 280 50 7 65 52.5 52.5 - 15
10mm x 1 x TP&N TPN 111/30 11 300 280 50 7 65 52.5 52.5 - 15
12MM x 1 x TP&N TPN 114/30 14 300 280 50 7 65 52.5 52.5 - 15
6mm x 1 x TP&N TPN 107/35 7 350 328 50 7 75 62.5 62.5 - 15
10mm x 1 x TP&N TPN 111/35 11 350 328 50 7 75 62.5 62.5 - 15
12MM x 1 x TP&N TPN 114/35 14 350 328 50 7 75 62.5 62.5 - 15
6mm x 1 x TP&N TPN 107/42 7 420 396 60 7 100 52.5 68 - 15
10mm x 1 x TP&N TPN 111/42 11 420 396 60 7 100 52.5 68 - 15
12MM x 1 x TP&N TPN 114/42 14 420 396 60 7 100 52.5 68 - 15
6mm x 2 x TP&N TPN 207/35 7 350 328 50 7 70 78 62.5 6 15
10mm x 2 x TP&N TPN 211/35 11 350 328 50 11 70 78 62.5 9 15
12mm x 2 x TP&N TPN 214/35 14 350 328 50 14 70 78 62.5 11 15
6mm x 2 x TP&N TPN 207/42 7 420 396 60 7 100 52.5 69 6 15
10mm x 2 x TP&N TPN 211/42 11 420 396 60 11 100 52.5 69 9 15
12mm x 2 x TP&N TPN 214/42 14 420 396 60 14 100 52.5 69 11 15

Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM
TPN: Triple Pole & Neutral

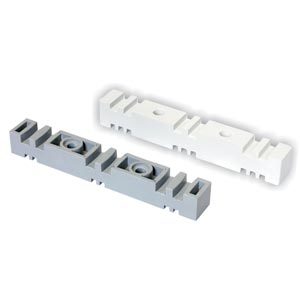

grip-type-support

Insulators11

Part No.
12 GS 406/311
31 GS 306/211
31 GS 207/211
31 GS 211/214
31 GSL 306/211
44 GS 207/211

Material: SMC (Sheet Molding Compound) / DMC (Dough Molding Compound)
All Dimensions are in MM
Mounting Hole Suitable for M8 Stud
C-C (ph): Centre to Centre Between Phases
GS: Grip Support
