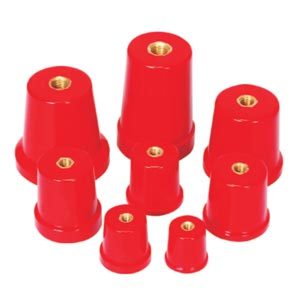

coniacl-type-insulators

Conical-Insulators

Dimensions

Height Part No. Insert (M) Rt Rb TL Nominal Voltage
H (mm) (mm) (mm) (mm) AC/DC
25 C 625 M6 19 25 7 400/500
30 C 630 M6 25 30 7 600/750
30 C 830 M8 25 30 9 600/750
35 C 635 M6 28 35 7 600/750
35 C 835 M8 28 35 12 600/750
40 C 640 M6 33 40 9 600/750
40 C 840 M8 33 40 12 1000/1200
40 C 1040 M10 33 40 12 1000/1200
45 C 845 M8 33 40 12 1000/1200
45 C 1045 M10 33 40 12 1000/1200
50 C 850 M8 40 50 12 1200/1500
50 C 1050 M10 40 50 15 1200/1500
50 C 1250 M12 40 50 17 1200/1500
60 C 1060 M10 40 50 15 1500/1800
60 C 1260 M12 40 50 17 1500/1800
60 C 1060 M10 40 60 15 1500/1800
60 C 1260 M12 40 60 17 1500/1800
70 C 1070 M10 40 50 15 2000/2400
70 C 1270 M12 40 50 17 2000/2400
75 C 1075 M10 40 50 15 2000/2400
75 C 1275 M12 40 50 17 2000/2400
80 C 1080 M10 40 50 15 2000/2400
80 C 1280 M12 40 50 17 2000/2400

Material: DMC (Dough Molding Compound)
All Dimensions are in MM
TL: Effective Thread Length
Insert: Brass / Steel (Zinc Plated)
Color: Red / Brown

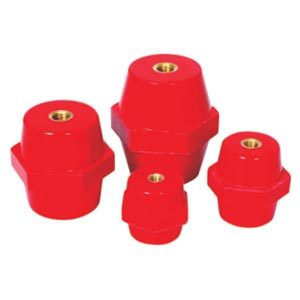

hexagonal-type-insulators

Hexagonal-Insulators

Height Part No. Insert (M) A/F R TL Nominal Voltage
H (mm) (mm) (mm) (mm) AC/DC
25 H 625 M6 21 16 7 400/500
25 H 825 M8 21 16 9 400/500
30 H 630 M6 31 25 7 600/750
30 H 830 M8 31 25 9 600/750
35 H 635 M6 32 26 7 600/750
35 H 835 M8 32 26 12 600/750
35 H 1035 M10 32 26 12 600/750
40 H 640 M6 39 31 9 600/750
40 H 840 M8 39 31 12 1000/1200
40 H 1040 M10 39 31 12 1000/1200
45 H 845 M8 41 32 12 1000/1200
45 H 1045 M10 41 32 12 1000/1200
50 H 850 M8 48 36 12 1200/1500
50 H 1050 M10 48 36 15 1200/1500
50 H 1250 M12 48 36 17 1200/1500
60 H 1060 M10 52 38 15 1500/1800
60 H 1260 M12 52 38 17 1500/1800
65 H 1065 M10 55 41 15 1500/1800
65 H 1265 M12 55 41 17 1500/1800
70 H 1070 M10 55 41 15 2000/2400
70 H 1270 M12 55 41 17 2000/2400
75 H 1075 M10 55 41 15 2000/2400
75 H 1275 M12 55 41 17 2000/2400

Material: DMC (Dough Molding Compound)
All Dimensions are in MM
TL: Effective Thread Length
Insert: Brass / Steel (Zinc Plated)
Color: Red

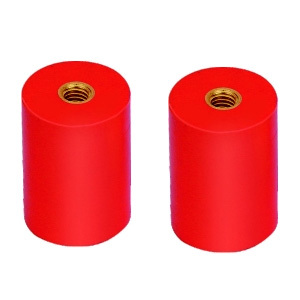

pm40

Cylindrical--Insulators

Height Part No. Insert (M) R TL Nominal Voltage
H (mm) (mm) (mm) AC/DC
25 CY 625 M6 25 7 400/500
30 CY 630 M6 30 9 600/750
30 CY 830 M8 30 9 600/750
40 CY 64030 M6 30 12 1000/1200
40 CY 84030 M8 30 12 1000/1200
40 CY 640 M6 40 12 1000/1200
40 CY 840 M8 40 12 1000/1200
40 CY 1040 M10 40 12 1000/1200
50 CY 85040 M8 40 17 1200/1500
50 CY105040 M10 40 17 1200/1500
50 CY 850 M8 50 17 1200/1500
50 CY 1050 M10 50 17 1200/1500
50 CY 1250 M12 50 17 1200/1500
60 CY 106050 M10 50 17 1500/1800
60 CY 126050 M12 50 17 1500/1800
60 CY 1060 M10 60 17 1500/1800
60 CY 1260 M12 60 17 1500/1800

Material: DMC (Dough Molding Compound)
All Dimensions are in MM
TL: Effective Thread Length
Insert: Brass / Steel (Zinc Plated)
Color: Grey / Red

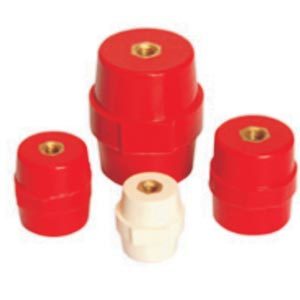

drum-type-insulators

Drum-Insulators

Height Part No. Insert (M) A/F R TL Nominal Voltage
H (mm) (mm) (mm) (mm) AC/DC
25 D 625 M6 21 16 7 400/500
25 D 825 M8 21 16 9 400/500
30 D 630 M6 31 25 7 600/750
30 D 830 M8 31 25 9 600/750
35 D 635 M6 32 26 7 600/750
35 D 835 M8 32 26 12 600/750
35 D 1035 M10 32 26 12 600/750
40 D 640 M6 39 31 9 600/750
40 D 840 M8 39 31 12 1000/1200
40 D 1040 M10 39 31 12 1000/1200
45 D 845 M8 41 32 12 1000/1200
45 D 1045 M10 41 32 12 1000/1200
50 D 850 M8 48 36 12 1200/1500
50 D 1050 M10 48 36 15 1200/1500
50 D 1250 M12 48 36 17 1200/1500
60 D 1060 M10 52 38 15 1500/1800
60 D 1260 M12 52 38 17 1500/1800
65 D 1065 M10 55 41 15 1500/1800
65 D 1265 M12 55 41 17 1500/1800
70 D 1070 M10 55 41 15 2000/2400
70 D 1270 M12 55 41 17 2000/2400
75 D 1075 M10 55 41 15 2000/2400
75 D 1275 M12 55 41 17 2000/2400

Material: DMC (Dough Molding Compound)
All Dimensions are in MM
TL: Effective Thread Length
Insert: Brass / Steel (Zinc Plated)
Color: Red
